Automatic Bottle Checkweigher with Rotary Turntable Inline Checkweighing System
This automatic bottle checkweigher with rotary turntable is designed for seamless product handling and accurate weight verification, streamlining your production processes. The bottle rotary checkweighing system combines a rotating turntable with advanced weighing technology to ensure stable bottle positioning for precise measurements. This automated bottle checkweighing system is designed for accuracy and speed, providing consistent weight verification for bottles of various sizes and materials. You are welcome to contact us at any time for quotation.

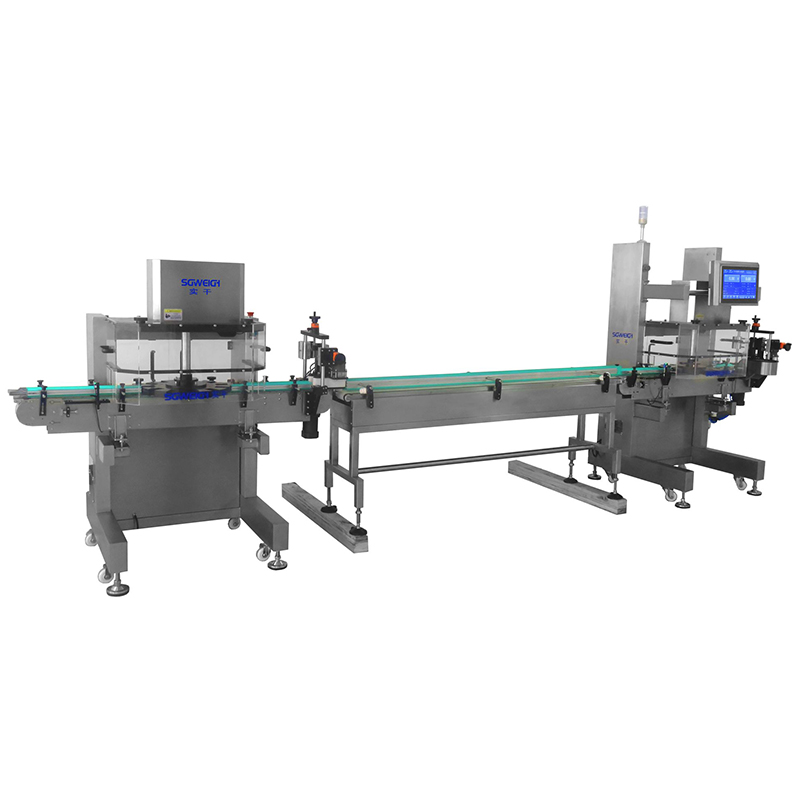

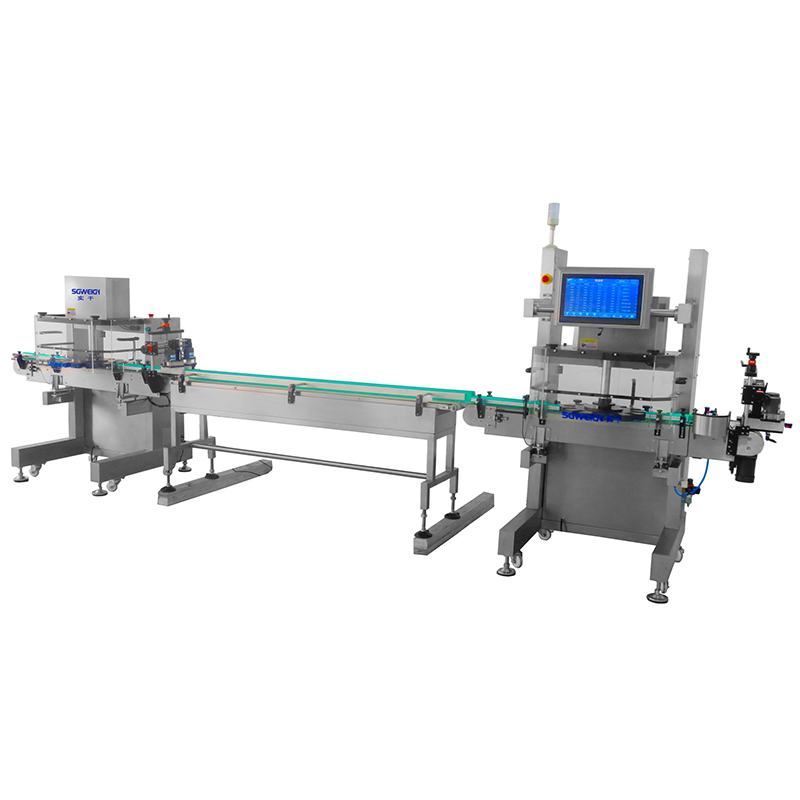

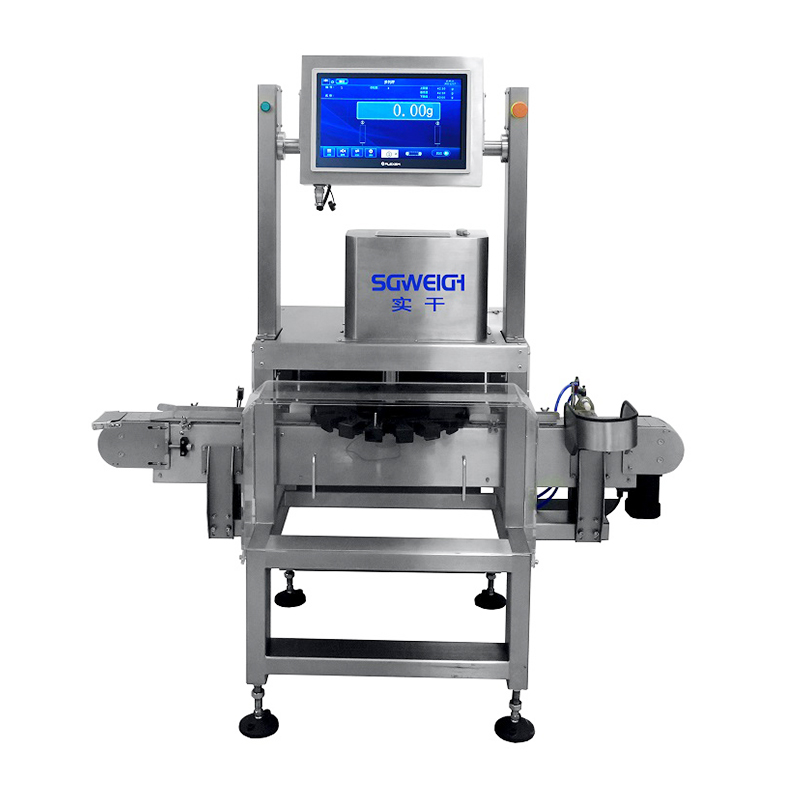

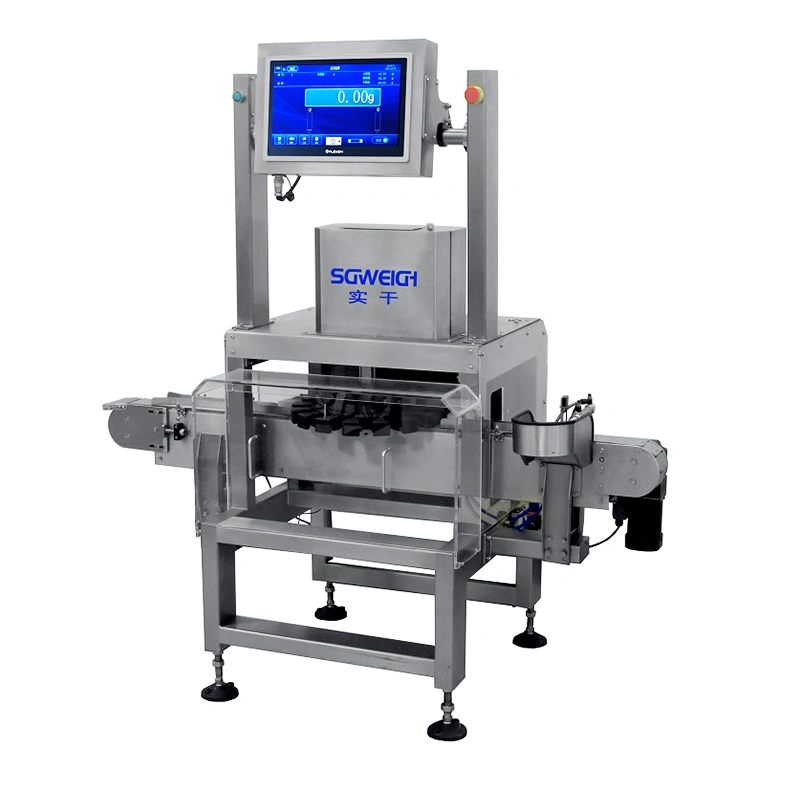

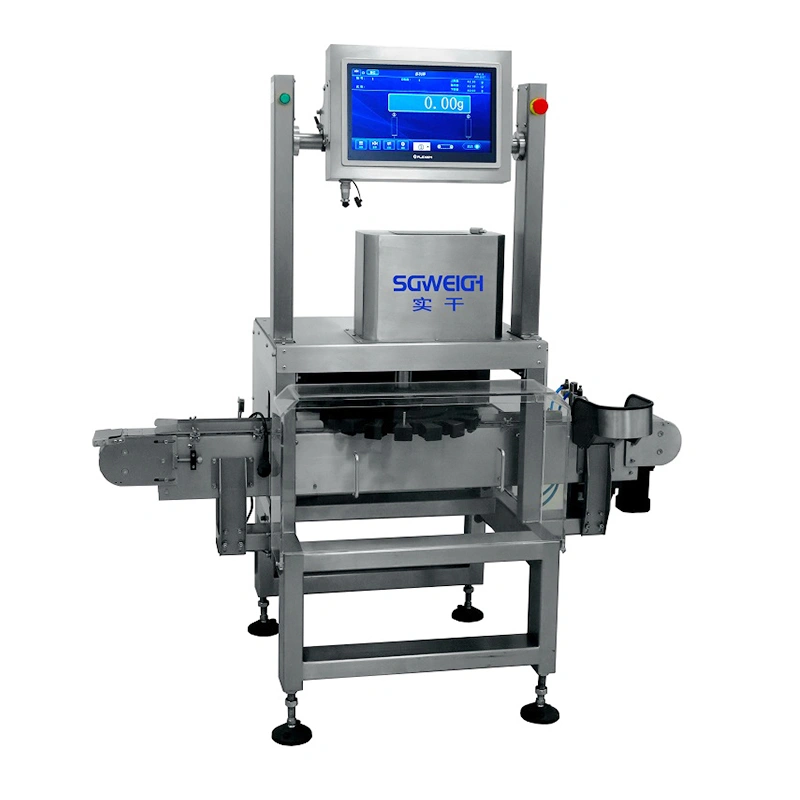

Automatic bottle checkweigher with rotary turntable photos
Model: SG-Z1
Weighing Range: 5-300g
Minimum Graduation: 0.01g
Sorting Speed: Maximum 50 pieces/minute (single channel)
Conveyor Speed: 20-100m/min
Operation Method: Touchscreen Operation
Conveyor Direction: From left to right when facing the touchscreen
Rejection Method: Air blow rejection/Push plate rejection
Belt Height from Ground: 750±50mm (customizable upon request)
Machine Structure: Stainless Steel (SUS304)
Power Supply: 220V 50-60HZ
Power Consumption: Approx. 300W
Wind Protector: Thick acrylic (to prevent airflow interference)
Operating Environment: Temperature: 0℃～40℃, Humidity: 30%～95%
Note: The detection speed and accuracy will vary depending on the properties of the products being tested and the operating environment. Actual testing shall prevail.
Automatic Bottle Checkweigher with Rotary Turntable Inline Checkweighing System
Automatic bottle checkweigher with rotary turntable support a wide range of glass, PET, and plastic bottles of various sizes and are widely used in the food, pharmaceutical, packaging, cosmetics, and agricultural product processing industries.
1. Gentle rotary handling prevents bottles from tipping over or breaking.
2. High throughput to meet ever-increasing production demands.
3. Real-time weight analysis automatically filters out underfilled or overfilled products; an automatic rejection system ensures only qualified bottles pass through.

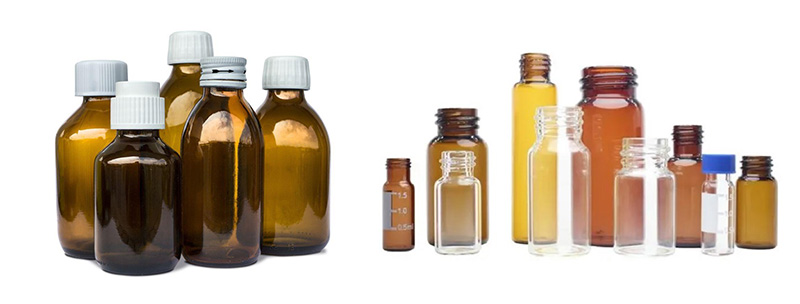

4. Supports a wide range of glass, PET, and plastic bottle sizes.
5. Sanitary stainless steel construction with a small footprint.
6. User-friendly touch interface for quick setup and adjustments.
7. Data logging function for continuous quality auditing.
8. Long-term stable operation with minimal maintenance.
The bottle rotary checkweighing system shown may not meet your requirements. To ensure we provide the correct and qualified machine, please provide us with more details about your project, such as materials, weight range, speed, bag size, etc. We will be happy to help you find the best checkweigher.
Automatic Bottle Checkweigher with Rotary Turntable Inline Checkweighing System

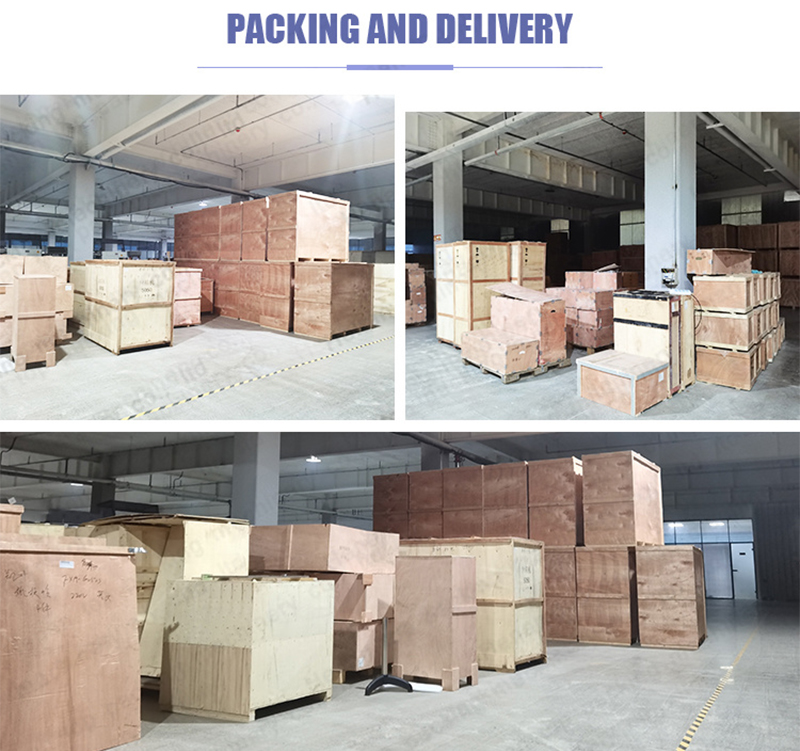

The equipment will be securely fixed and then packed into wooden cases for protection during transportation.
Fast delivery guaranteed! The earliest delivery time is 15 days after payment.
Pre-sales Service
1. Test with customer engineers to learn how to use the machine.
2. With product samples and our machine.
3. Test machine video will be sent to the customer, then the balance will be paid to us.
After-sales Service
1. Manual.
2. Adjustment and setup video.
3. Telecommunications. Or face-to-face online communication is possible.
4. This machine has a one-year warranty and lifetime maintenance. 7/24 online technical support.
