High Speed Capsule Tablet Checkweigher Precision Pharmaceutical Weighing Solution
Check weigher as known as checkweigher, check weighing machine, weight check machine, check weight machine, weight checker, weight sorting machine, weighing machine, and etc,.
This high speed capsule tablet checkweigher is designed for precise weighing in the pharmaceutical industry, enabling ultra-high accuracy weight verification of capsules, tablets, and soft capsules. Equipped with advanced weighing sensor technology, this high-precision capsule tablet checkweigher effectively detects underweight, overweight, and defective products. Its rapid weighing capability combined with an intelligent rejection mechanism ensures a continuous and smooth production process, guaranteeing product integrity and patient safety. You are welcome to contact us at any time for quotation.

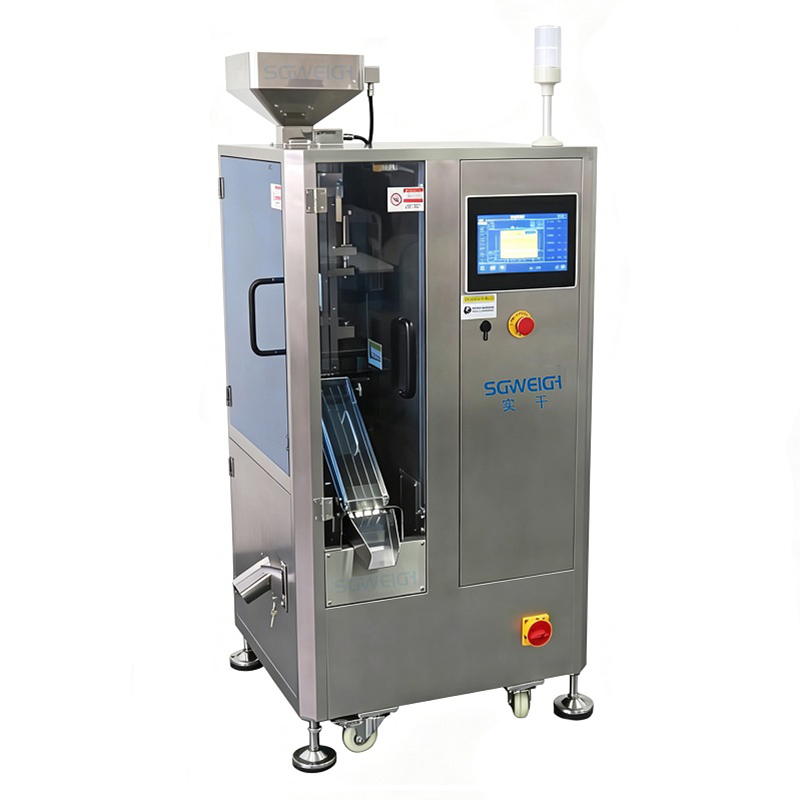

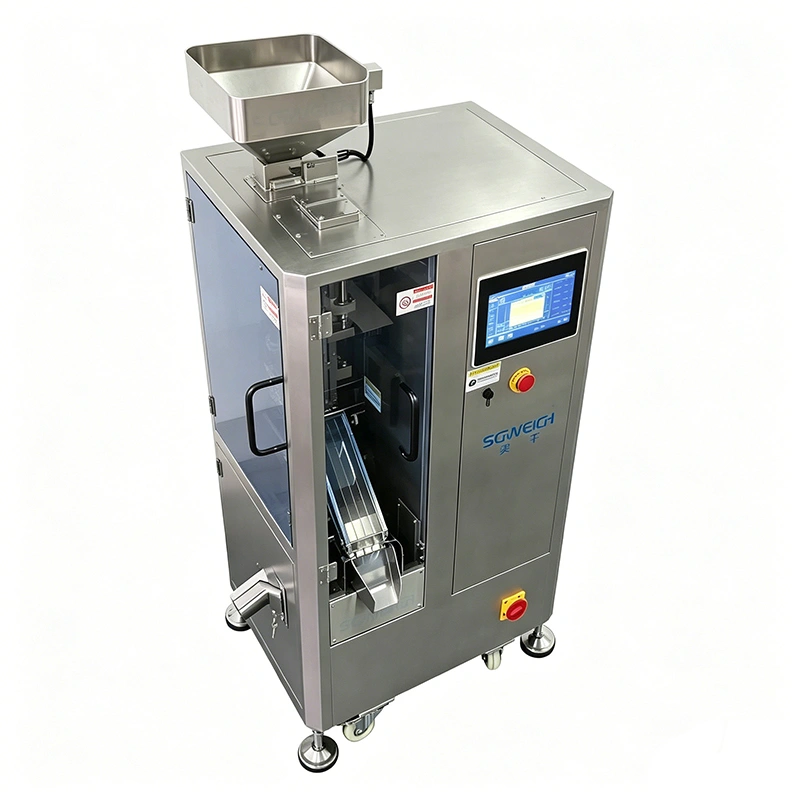

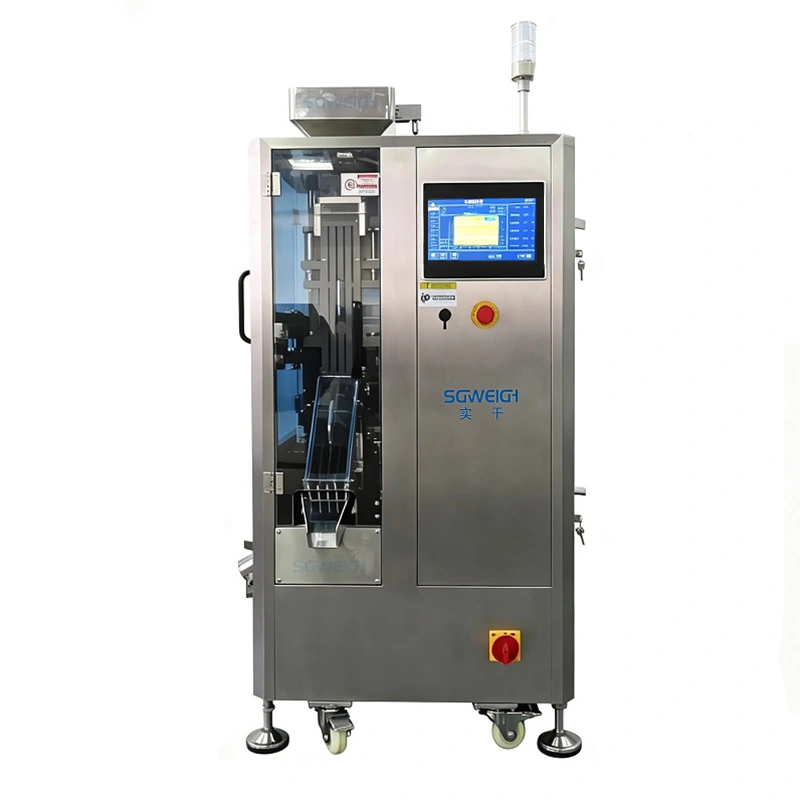

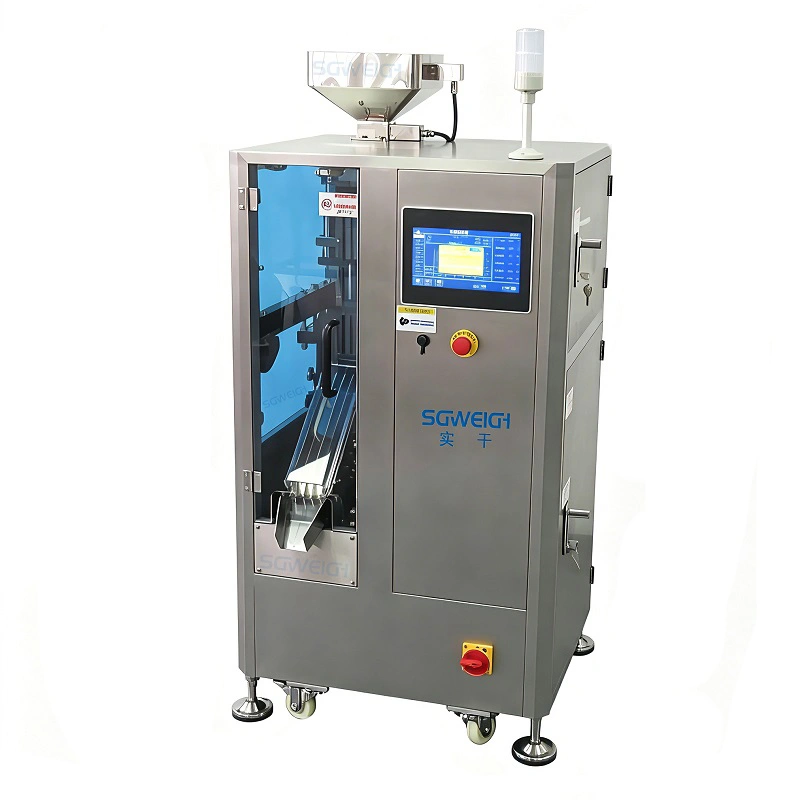

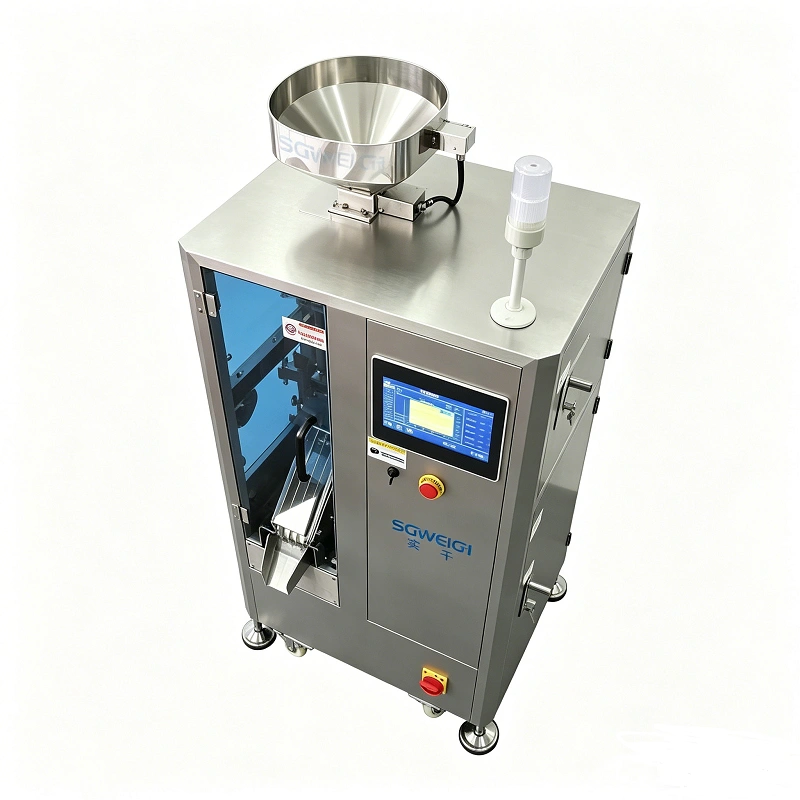

High speed capsule tablet checkweigher photos
Equipment model CM is ±1.0-2000
Design capacity 2000 tablets/minute (120,000 tablets/hour)
Actual capacity >120,000 tablets/hour
Weighing scale 10~2000mg
Resolution 0.1mg
Dynamic accuracy ±1.0mg (actual operation accuracy ±1.0mg, minimum ±1.5mg)
Applicable materials Capsules 000#~5#, conventional tablets
Working voltage AC220V/50Hz
Control voltage DC24V
Rated power 0.6KW (main machine 0.3kw, each single machine 0.15kw)
Working pressure 0.6~0.8 Mpa
Gas consumption 0.1m³/min
Equipment weight 200kg (main machine 60kg, single machine 70kg)
Overall dimensions 740*350*1480mm (main unit width 350mm, stand-alone unit width 190mm)
1. Displays real-time data for each channel.
2. Three-level access control, supports custom passwords.
3. Stores 100 preset product formulas.
4. All channels can be cleaned without disassembly.
5. Multi-channel product transfer improves production efficiency (channel number customizable).
6. Capsules/tablets placed in the hopper are divided into multiple lanes by the hopper for high-speed conveying, weighing, and sorting.
7. Improves the reliability and environmental flexibility of capsule/tablet handling.
8. Handles various types of capsules/tablets.
9. Ensures accurate detection and reliable rejection of products with unsuitable weight.
Ideal applications include:
Capsule filling and packaging lines
Tablet compression and counting systems
Production of nutritional supplements and dietary supplements
Pharmaceutical quality testing
High Speed Capsule Tablet Checkweigher Precision Pharmaceutical Weighing Solution

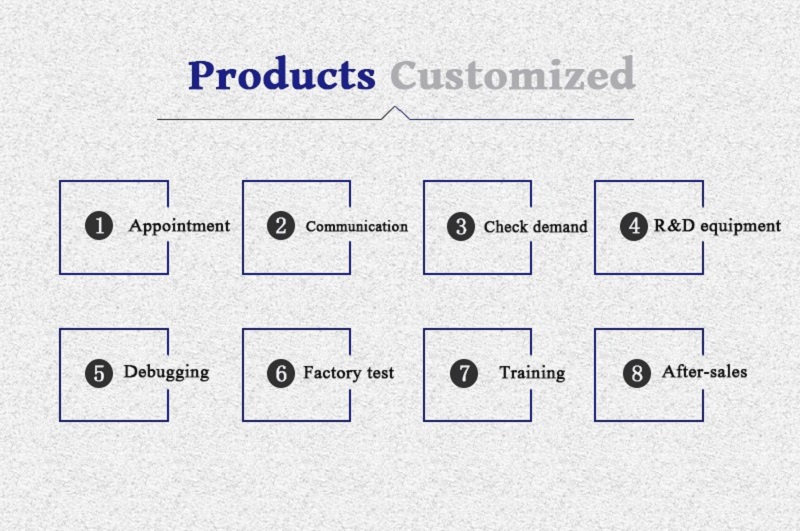

The high speed capsule tablet checkweigher shown may not meet your requirements. We can customize it to your specific needs, including the number of check channels (2-35 channels), perfectly solving your production line checkweighing problems.
High Speed Capsule Tablet Checkweigher Precision Pharmaceutical Weighing Solution
Packaging and transportation
The whole machine is packed in two layers
Pre-packaging uses plastic bags to deliver the whole machine, and key components are protected by foam plastic
Engineering packaging uses sturdy polyethylene wooden boxes that meet the import standards of different countries
Installation and use
After unpacking, lift the rubber base and move it to your working position with wheels.
1. How can you best meet our requirements and needs?
We will recommend suitable machine models and make unique designs based on your project details and requirements.
2. Are you a manufacturer or a trading company?

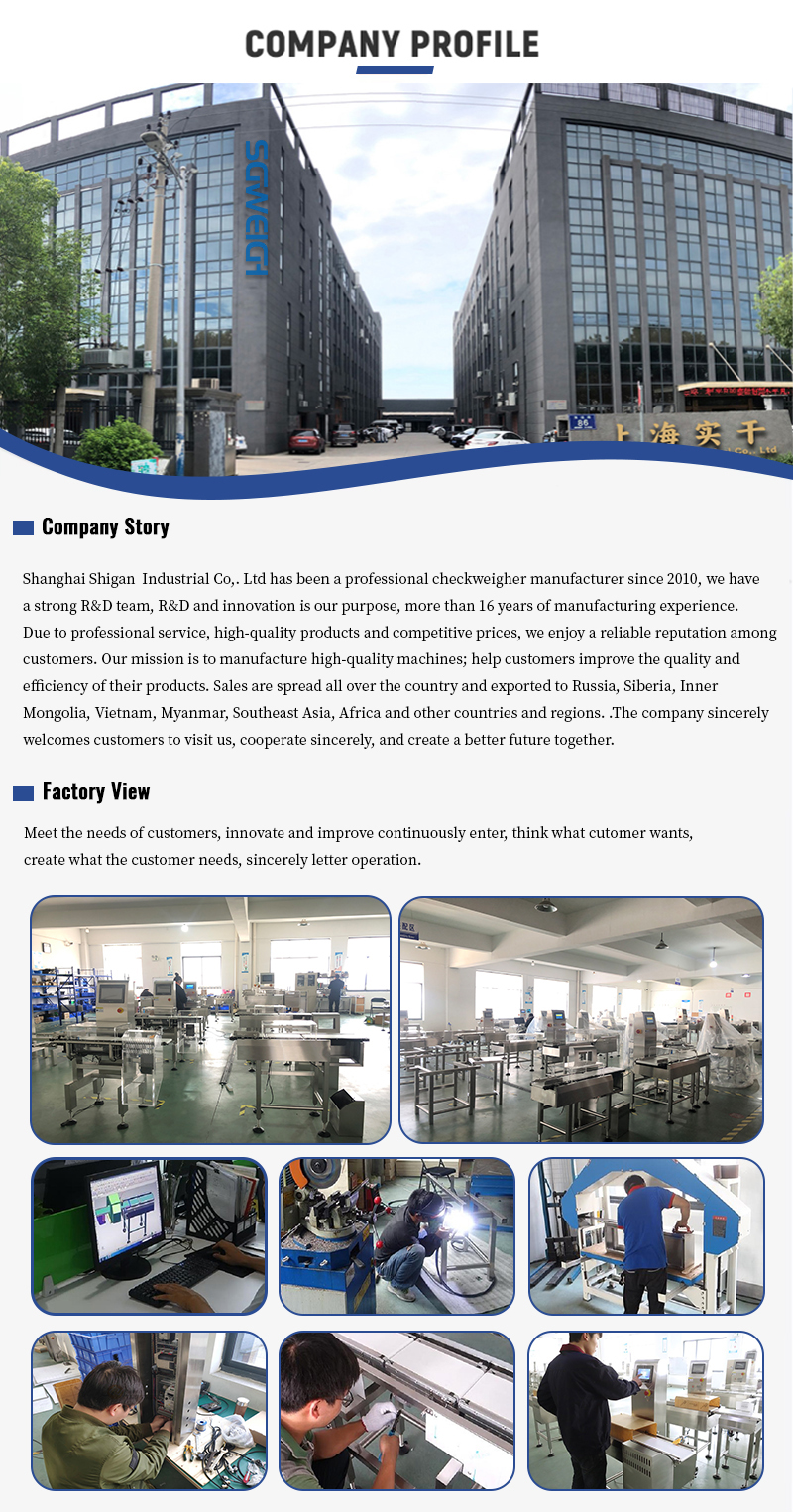

We are a manufacturer; We have a 17 year history of specialized production lines for dynamic checkweighers and metal detection machines.
3. How do we check the quality of your machine after placing an order?
We will send you photos and videos of the machine before shipment to check its operation. More importantly, you are welcome to come to our factory to inspect the machines yourself.
4. Why did we choose you?
The machine has a one-year warranty and lifelong maintenance. Provide solutions as soon as problems arise.
